Yardmaster

YARDMASTER HALO

SUPERSMART Effluent Monitoring & Control

YARDMASTER® HALO® provides next generation monitoring and control of your Dairy Effluent system. The SUPERSMART Monitoring & Control platform can be tailored to match the requirements of your farm and you can choose from a range of additional options.

Key features include:

  • Enables the application of effluent at a controlled rate
  • The VSD will adjust motor speed to required effluent disposal rate
  • Monitor flow with auto shut-off when interrupted or compromised
  • Text alerts when system stops, cause notification
  • Pump run feedback with remote start/stop
  • Pressure guard
  • Pond level management, including freeboard alerts
  • Programmable application
  • Metering of applied volumes
  • Manage up to six zones remotely

Additional options:

  • Travelling irrigator fail-safe and proof-of-placement
  • Pod placement and pressure guard
  • ‘Greenwater’ priority storage for floodwash management
  • Geo fencing
  • Sump control

Ideal for...

Control of multiple product flows so the power is delivered where needed.

Sizes

11kW, 15kW, 18.5kW and 22kW VSD pump controller. All capable of running a 7.5kW DOL stirrer in tandem.

COMPLIANCE: As compliance requirements develop our SuperSmart technology is ready to go. With unlimited cloud-based storage of all your effluent data ready to be shared directly with Regional council if needed.

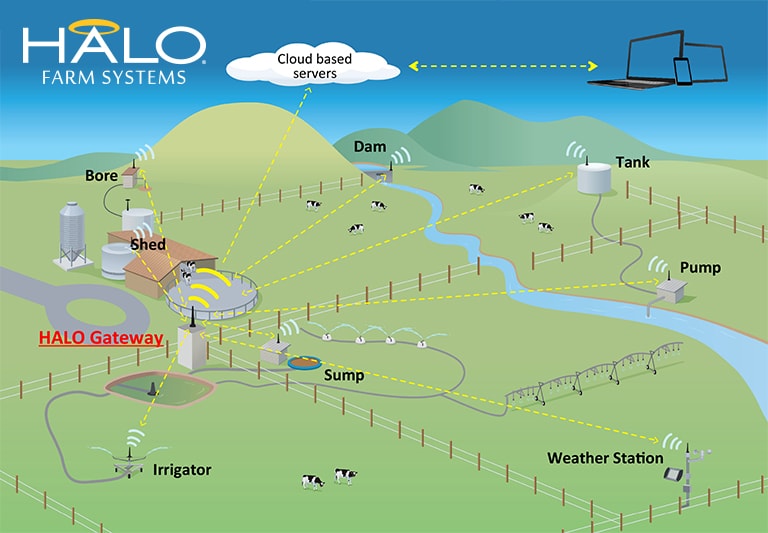

HOW THE HALO SYSTEM WORKS

Each HALO system starts with a Gateway base statIon, incorporaIng a GSM data connection. This GSM connection communicates all on-farm data directly to our cloud based servers. Software and system updates are taken care of via this link also.

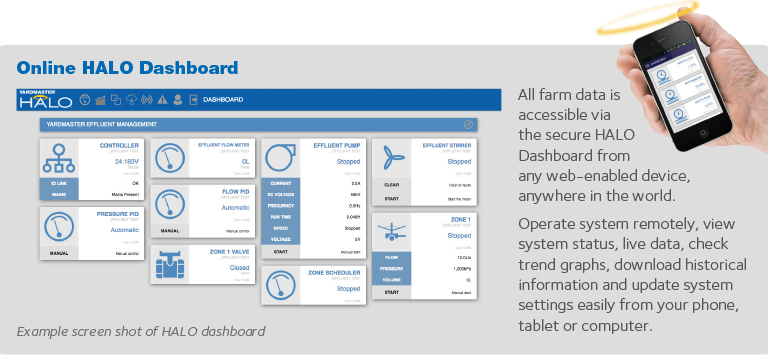

To include mulIple data points across the farm we have created a low cost, high performance radio platform. HALO transmits via a mesh of repeating radio nodes each of which can record and transmit data as required. All data is made available via our secure, online HALO Dashboard.

Future Expansion

This HALO platform has the capacity to work seamlessly with our wider suite of farm management systems. Monitor milk vat storage, primary cooler efficiency, water usage, tank storage, silo level alerts, weather stations and much more.


To enquire about this product, call us on 07 888 8224 or email us on martin@yardmaster.co.nz.


YARDMASTER HALO

Other Products you may be interested in:

Progressive Cavity Pump
Progressive Cavity Pump

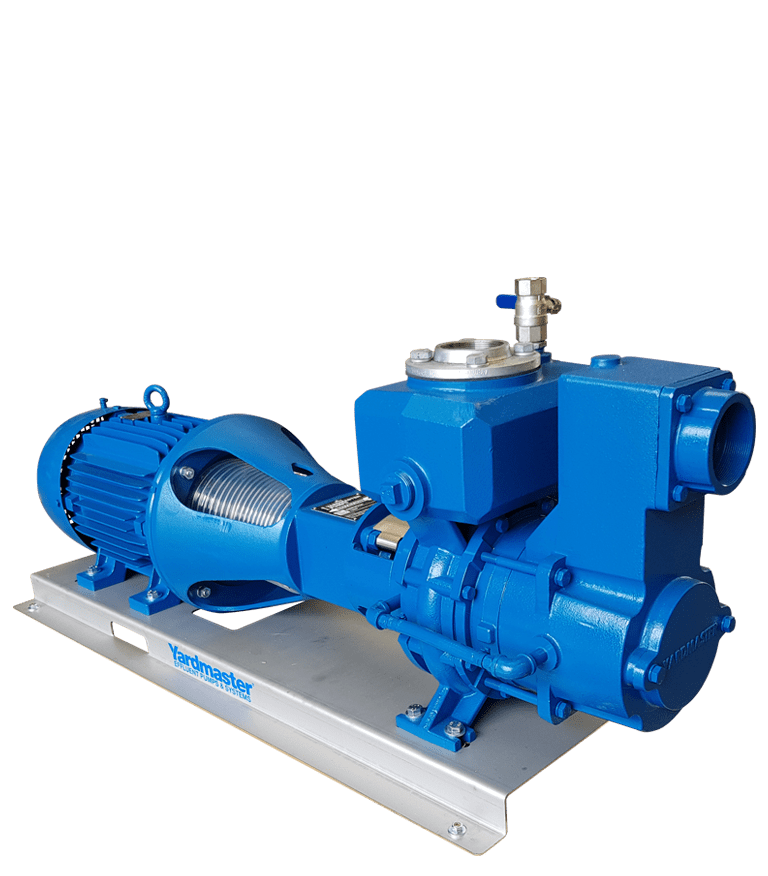

Self Priming Multi-Stage
Self Priming Multi-Stage
Vertical Effluent Pump
Vertical Effluent Pump

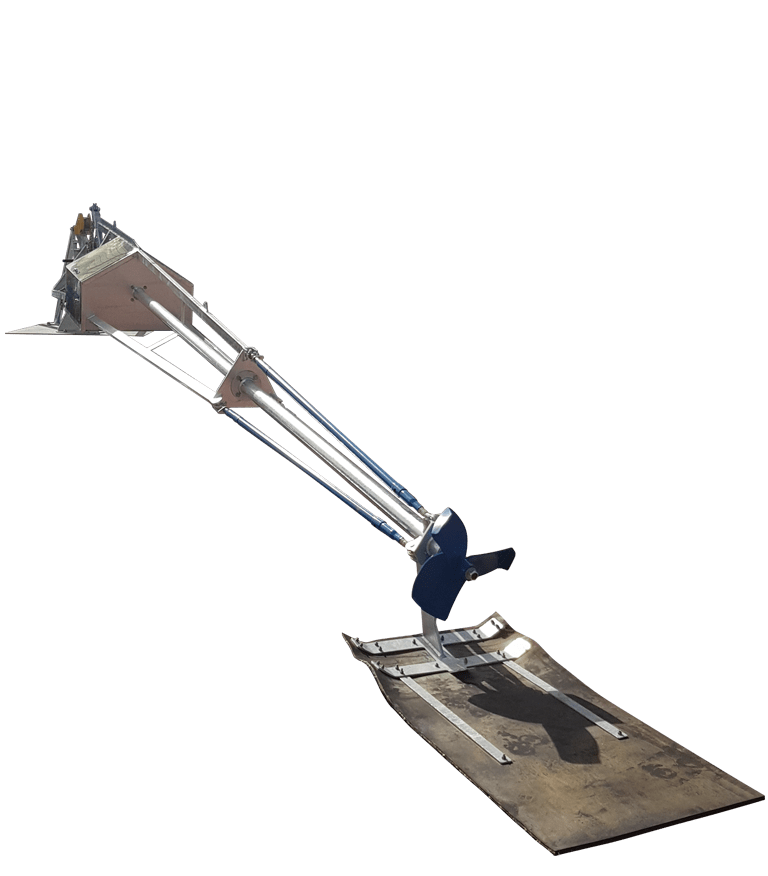

Shore Mounted Stirrer
Shore Mounted Stirrer

Benefits of choosing Yardmaster®

Yardmaster pumps have for over 60 years proven their reliability.

Yardmaster manufacture/assemble their products in New Zealand in their Matamata factory.

Yardmaster products are designed in New Zealand for New Zealand conditions.

Yardmaster has a controlled Test facility to ensure our products work.

Yardmaster has a comprehensive range of products that we can combine to meet FDE system design accreditation.

Yardmaster provides local support via our nationwide Certified Dealer Network which in-turn is supported from the product experts at our Matamata factory.
